The iteration of large cells is rewriting the safety boundaries of energy storage systems.

587Ah and 628Ah high-capacity cells are accelerating into the mainstream. As cells become larger, the current per cluster rises accordingly, and system requirements for fault interruption also increase. As the core interruption device between battery clusters and PCS, high-voltage DC contactors face three more stringent challenges: higher current withstand, longer electrical life, and stronger short-circuit resistance.

Industry Evolution Trends

1.Withstand time at 2× rated current and above has increased severalfold compared with 314Ah cell systems.

2.Short-circuit withstand capability must reach above 12kA.

3.Electrical life at rated current must reach more than 1,000 operations.

Contactors that cannot keep up with these three indicators are becoming the weakest link in the system safety chain.

In response to this market change, Vicvac recommends three 500A ceramic-sealed high-voltage DC contactors: VVC500A, VVC500D, and VVC500K.

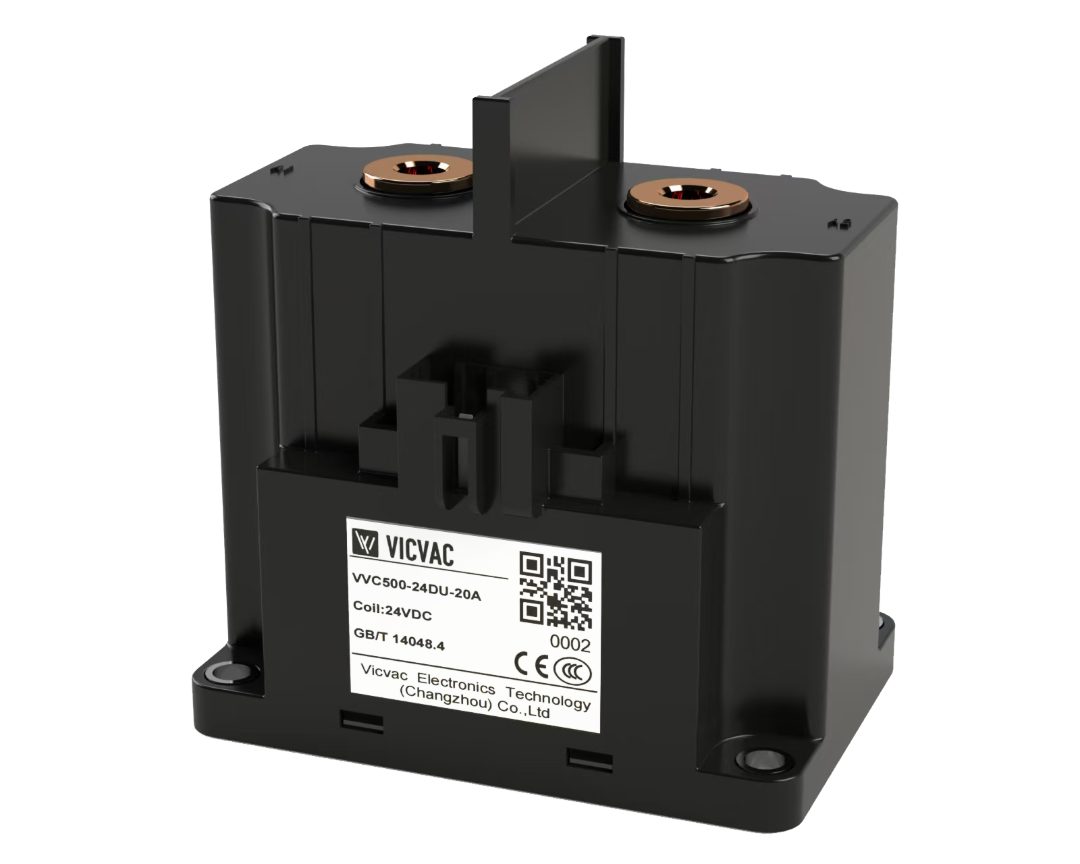

VVC500A Series

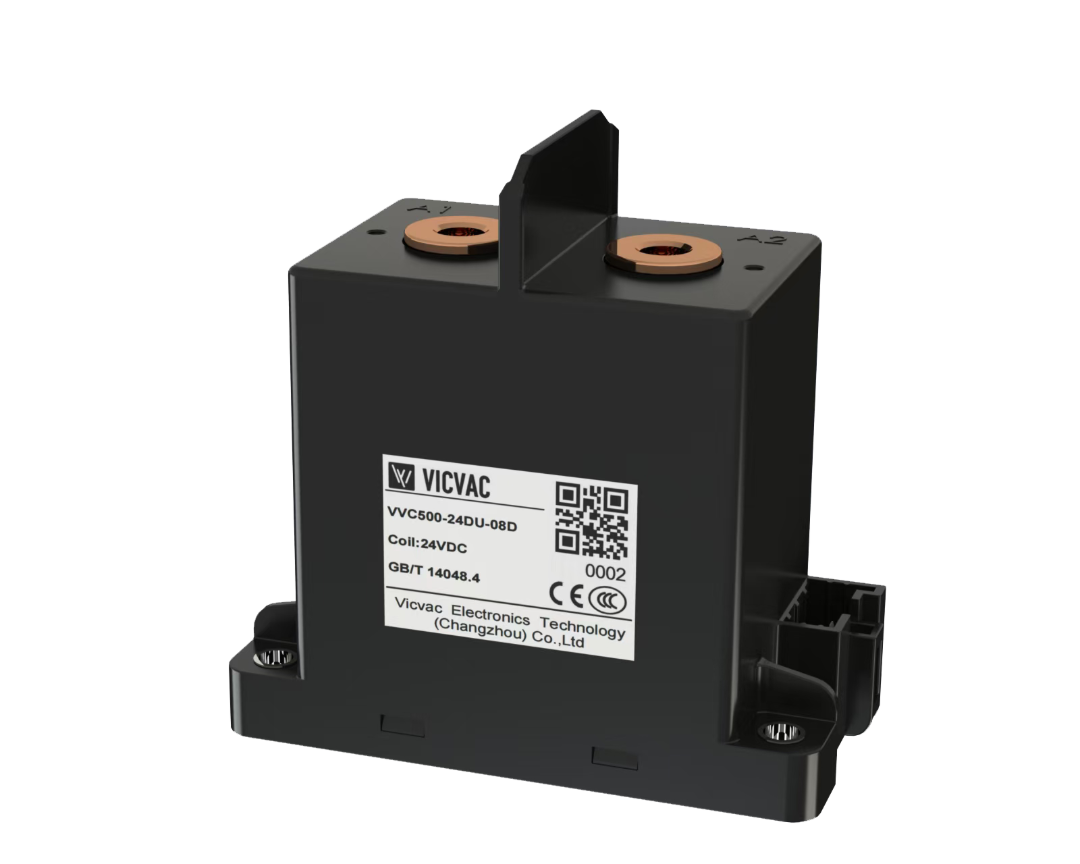

VVC500D Series

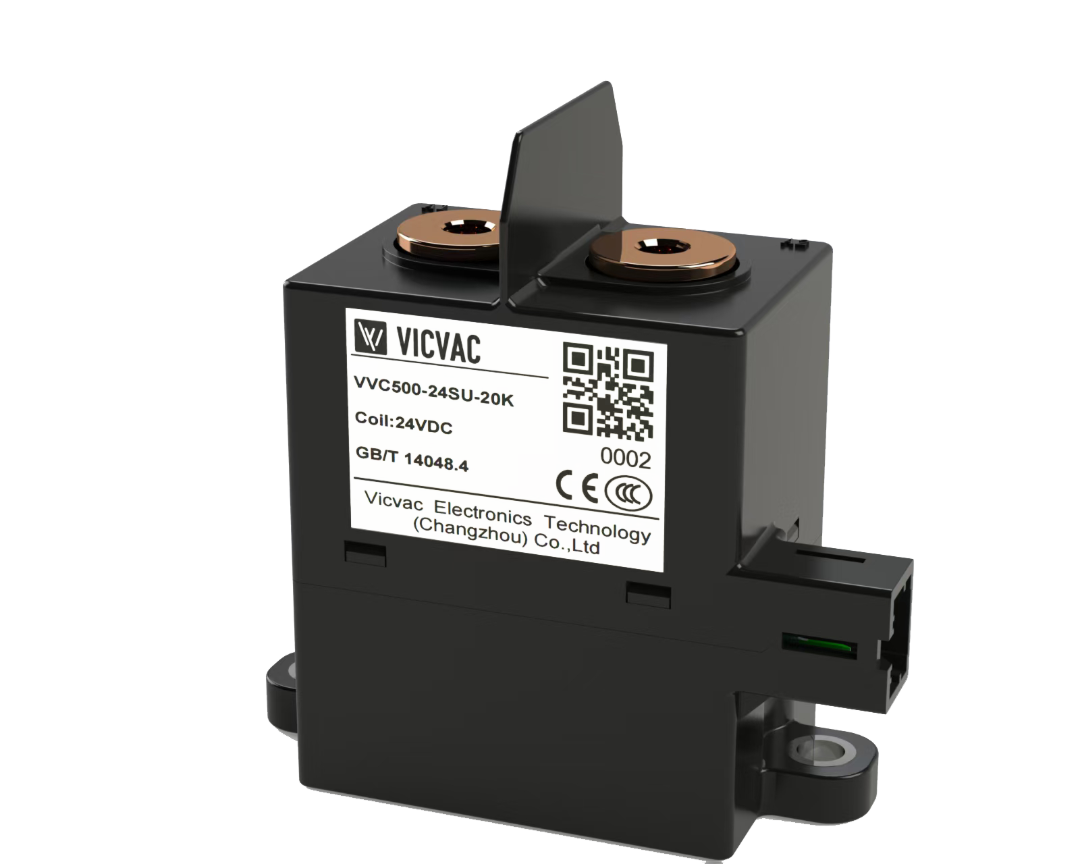

VVC500K Series

• Full rated configuration — standard 1500V 500A, perfectly matching the topology design of 6.25MWh high-capacity energy storage cells;

• Reliable arc extinction — combines strong magnetic transverse arc blowing, ceramic chamber sealing, and inert gas protection to ensure fault interruption with no reignition and no arc flash leakage;

• Ultra-long life — the contactor contacts use wear-resistant composite materials + an elastic buffer structure, with mechanical life exceeding 200,000 operations and electrical life meeting full-cycle service requirements;

• Optimized heat dissipation — uses integrated conductive copper busbars + precision-polished contacts to ensure long-duration current withstand through extremely low contact resistance.

• Three housing frames — covering different installation and wiring layout requirements, making it easy for customers to select based on system needs.

• Compliance certifications — has passed international authoritative safety certifications such as UL, CE, and CQC, and complies with RoHS and REACH environmental directives.

At present, this series has completed testing and verification with mainstream customers — this is not just a set of parameters, but a mature solution verified under actual customer operating conditions.

In the Era of Large Cells,Safe Interruption Should Not Be a Weak Point.If you are selecting high-voltage DC contactors for a new-generation energy storage system , welcome to contact Vicvac to obtain selection recommendations and test data .

Leading the Field of Intelligent Safety for New Energy

Vicvac has R&D and production capabilities for the full range of high-voltage DC contactor products, covering all application needs from 20A to 1500A. The company has passed ISO9001 and IATF16949 system certifications. Choosing Vicvac means choosing energy storage components with high reliability, high energy efficiency, and low maintenance.
